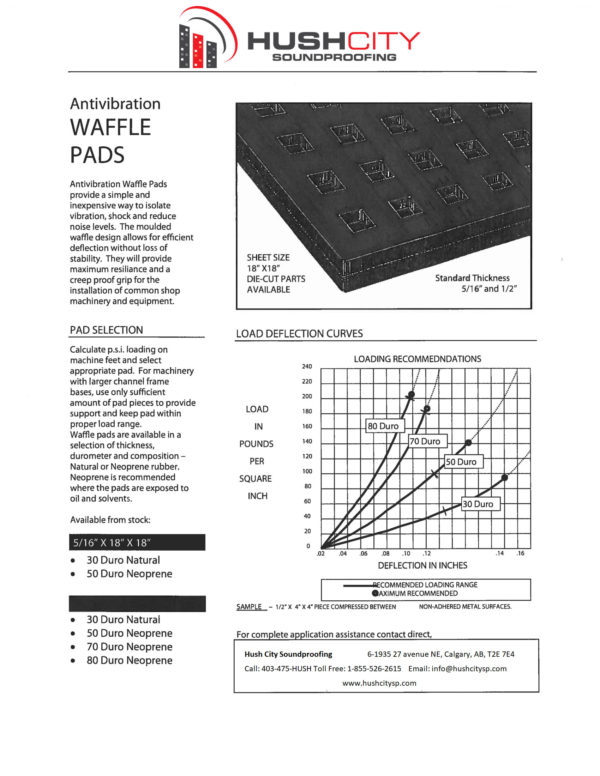

Waffle Pads

Anti-vibration Waffle Pads are a cost-effective, simple way to effectively isolate vibration and shock as well as reduce noise levels in a variety of applications. The molded waffle design allows for efficiently deflection without loss of stability. These pads have the ability to provide maximum resilience and a creep proof grip. Anti-vibration Waffle Pads are easy to install under most common shop machinery and equipment.

Pad Selection

Calculate p.s.i. loading on machine feet and select appropriate pad. For machinery with larger channel frame bases, use only sufficient amount of pad pieces to provide support and keep pad within proper load range. Waffle pads are available in a selection of thickness, durability and composition (natural or neoprene rubber). Neoprene is recommended where the pads are exposed to oil and solvents.

Sizes Available:

5/16″ x 18″ x 18″ – 30 Duro natural or 50 Duro neoprene

1/2″ x 18″ x 18″ – 30 Duro natural, 50 Duro neoprene, 70 Duro neoprene
